Product Details:
|
| Material: | Tungsten Carbide | Coated: | DLC Rainbow Coating |
|---|---|---|---|
| Standard: | Long Flute | Series: | Cu |
| Flute: | 3 Flutes | Flute Dia.: | 8mm |
| Flute Length: | 40mm | Shank Dia.: | 8mm |
| Helix Angle: | 35° | Overlength: | 100mm |
| Shank Shape: | Straight Shank | ||
| High Light: | Copper Electrode Long Flute End Mills,3 Flute End Mills Square,Long Flute End Mills 8mm |
||

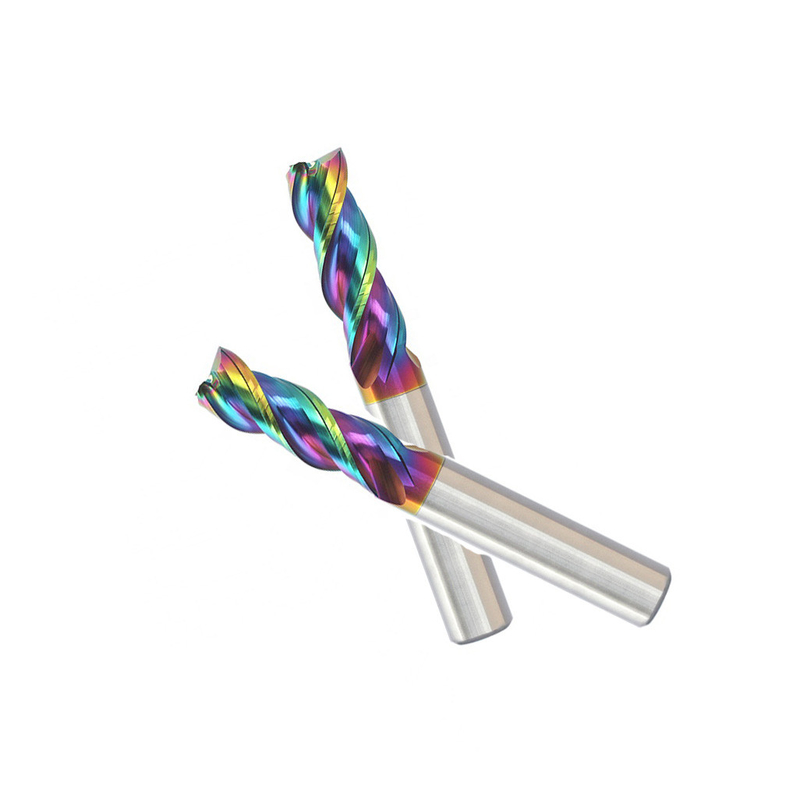

They can be general purpose or high perfomance. They can be used used for plunging, grooving, side milling, face milling. These are the most popular milling cutters in the industry. They are available in a wide variety of diameter sizes. The coating of end mills surface is DLC rainbow ,it can iusure the perfect finishing copper Electrode, and that is good to next processing.
| Material: | Tungsten Carbide |
| Standard: | Long Flute |
| Flute: | 3 Flutes |
| Flute Length: | 40mm |
| Helix Angle: | 35° |
| Shank Shape: | Straight Shank |
| Coated: | DLC Rainbow Coating |
| Series: | Cu |
| Flute Dia.: | 8mm |
| Shank Dia.: | 8mm |
| Overlength: | 100mm |
Tips: The specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 2F, 3F, 4F, and the logo could becustomized. we can also customize diffierent length of end mill flute, ball nose end mills ,corner radius end mills, or square end mills.
