Product Details:
|
| Material: | Tungsten Carbide | Coated: | Diamond Coated |
|---|---|---|---|
| Standard: | Long Neck | Flute: | 2 Flutes |
| Flute Dia.: | 1mm | Flute Length: | 2mm |
| Neck Length: | 16 | Shank Dia.: | 4mm |
| Helix Angle: | 35° | Overlength: | 75mm |
| Shank Shape: | Straight Shank | ||
| High Light: | 0.5mm Long Neck End Mills,2 Flute 3mm ball nose end mill,Long Neck End Mills Diamond Coated |
||

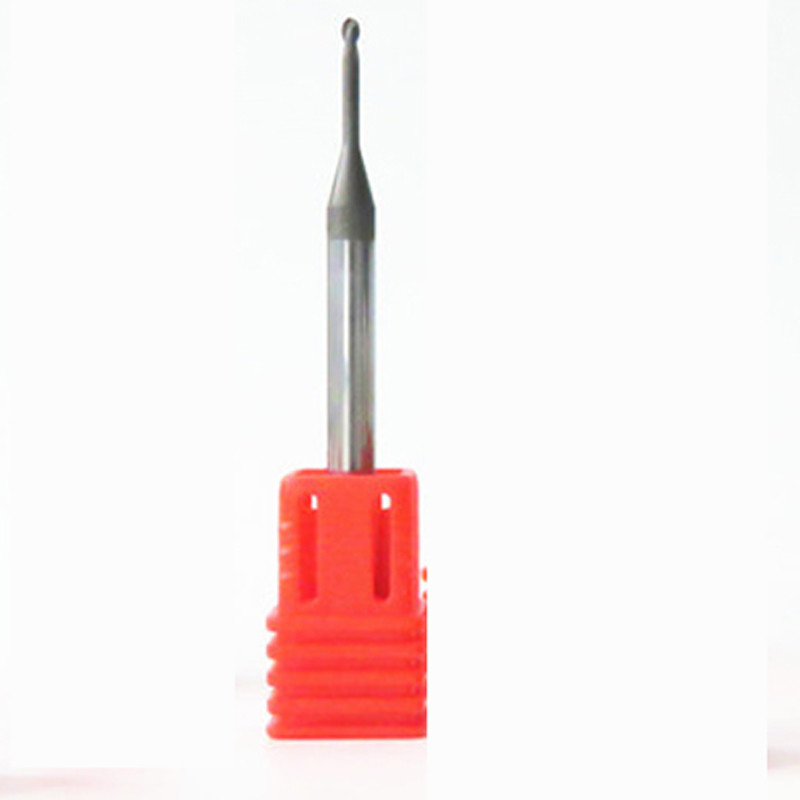

The long neck graphite end mills are coated diamond. They can be general purpose or high perfomance. They can be used used for plunging, grooving, side milling, face milling, and counter boring. They are available in a wide variety of diameter sizes."End Mills for Graphite" select high-quality carbide materials, advanced manufacturing technology, additional higher standard of surface diamond coating, "End Mills for Graphite" and through rigorous testing equipment,
| Material: | Tungsten Carbide |
| Standard: | Long Neck |
| Flute Dia.: | 1mm |
| Neck Length: | 16 |
| Helix Angle: | 35° |
| Shank Shape: | Straight Shank |
| Coated: | Diamond Coated |
| Flute: | 2 Flutes |
| Flute Length: | 2mm |
| Shank Dia.: | 4mm |
| Overlength: | 75mm |
Advantages:
1: imported raw powder materials,
2: have a peculiar gradient cobalt-rich on surface of the substrates which can ensure the inserts’ high performance when finishing the diamond coating.
