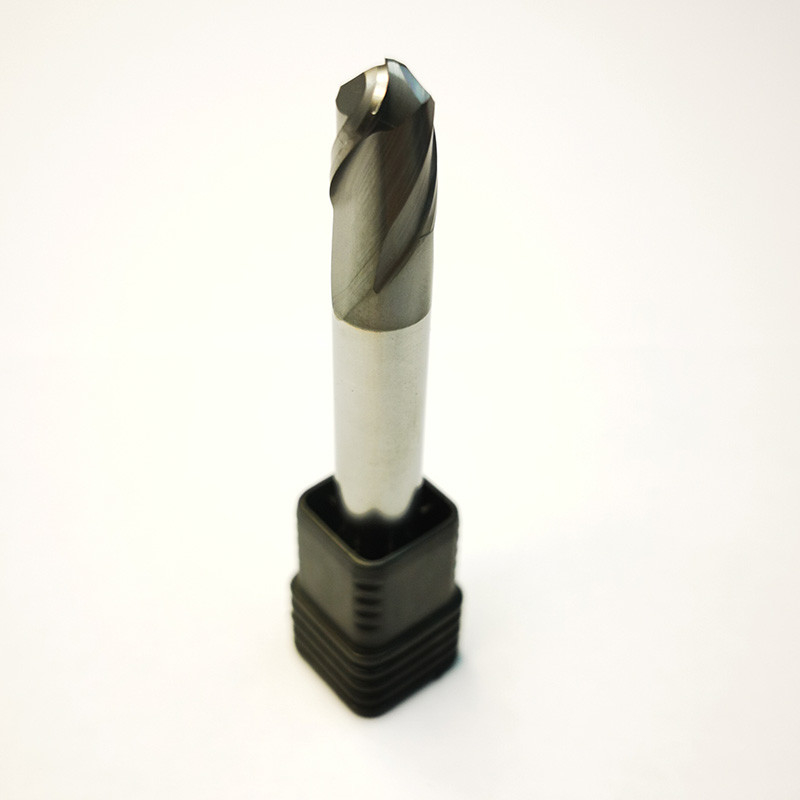

Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST

Certification
China Ningbo Cnway Precision Tools Co.,Ltd certification
I'm Online Chat Now

Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST

Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST
Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST

Large Image :  Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST

Product Details:
Place of Origin: CHINA
Brand Name: TS
Model Number: ST/D10R5*F20*75L*C10*2T
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Price negotiable
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P

Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST

Description
Material: Tungsten Carbide Coated: TiAlN
Standard: Standard Hardness Degree: HRC65
Series: ST Flute: 2flutes
Flute Dia.: 10mm Corner Radius: R5
Flute Length: 20mm Shank Dia.: 10mm
Helix Angle: 35° Overlength: 75mm
Shank Shape: Straight Shank

Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST.The optimized flute design can increase wear-resistance and long life span. The coating can provide excellent milling performance up to 65 HRC.The  SP series stungsten Carbide End mills are suitable for processing Carbon Steel, Pre-hardened Steel, Hardened Steel ( <HRC65).







Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST 0

Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST 1Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST 2Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST 3

STRICK INSPECTING PRODUCT



Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST 4

END MILLS ON PROCESSING

Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST 5Solid Tungsten Carbide 2 Flutes D10R5 Ball Nose End Mills Hrc65 ST 6

OUR STOCKS



FAQ

1. Who are we?
Cnway is professional cutting tool supplier founded in 2008. Cnaway has a excellent teams in designing and manufacturing. Welcome to contact with us , we can meet all your requirement.


2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.


3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.



5. How is the packing?

All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.



6. What is your terms of payment?

Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
